LNG Carrier

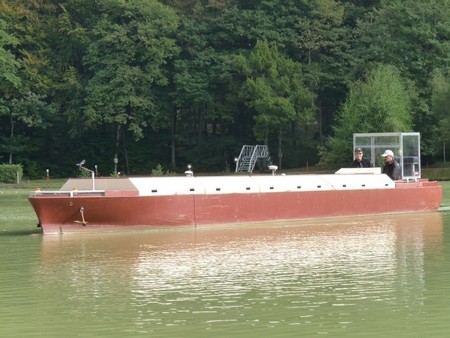

The "Ben Franklin" model
The "Ben Franklin" is a replica of the liquid natural gas (LNG) carrier (125 000 m3), fitted with Controllable Pitch Propeller and Schilling rudder if requested.
The CPP on this model is a left-hand turning propeller when sailing ahead.
However, it behaves like a right handed propeller when sailing astern.
This is because the propeller is left-hand turning at any time, as it is the blades that change pitch instead of the propeller shaft going reverse.
As an option, this model can also sail with a traditional fixed pitch as a left-handed propeller.
Another option on this ship is a Schilling rudder which has fish-tail shape and a maximum rudder angle of 70°. With this angle, the Schilling rudder has a 77% propeller disk coverage instead of 52.5% for a conventional rudder with 35° max rudder angle.
This induces:
- Significantly reduced overshoot angles.
- Exceptional full speed course keeping ability.
- Improved crabbing and zero speed control.
- Enhanced turning capability with significantly reduced turning circles at speed.
- Reduced head reach and lateral deviation.
The Q-Max model
In this version, the Q-Max can carry 266 000 m3 of LNG and has twin-screw inward turning propellers and two rudders.
The length o.a is 345 m and breadth is 53,80 m. The max windage is 9000 square meters.
BEN FRANKLIN (125 000 m3)
Dimensions
| 1/25th | Real | |
| Length o.a.: | 10,92 m | 273 m |
| Width: | 1,64 m | 41 m |
| Weight: | 5,79 t | 90 000 t |
| Draft loaded: | 0,44 m | 11,10 m |
Main features
| 1/25th | Real | |
| Main propulsion: | Engine / Turbine - Single propeller with fixed pitch and variable pitch | |
| Rudder: | Normal and Schilling | |
| Power: | 0,41 CV | 32 000 HP |
| Rate of turn (Deg/sec): | 13 | 2,6 |
| Bow and stern thruster: | - | 1 500 HP |
| Boost bow and stern thruster: | 0,050 t | - |
| Chain length: | 13,30 m | 332,50 m |
Q-MAX (266 000 m3)
Dimensions
| 1/25th | Real | |
| Length o.a.: | 13,80 m | 345 m |
| Width: | 2,15 m | 53,80 m |
| Weight: | 11,52 t | 180 000 t |
| Draft loaded: | 0,48 m | 12 m |
Main features
| 1/25th | Real | |
| Main propulsion: |
Engine / Turbine - Double Fixed Pitch Propeller |
|
| Rudder: | Normal and Becker | |
| Power: | 0,66 CV | 52 000 HP |
| Rate of turn (Deg/sec): | 13 | 2,6 |
| Bow and stern thruster: | - | - |
| Boost bow and stern thruster: | 0,100 t | - |
| Chain length: | 14,70 m | 367,50 m |
